ALUMINUM SWING DOOR
Unitized Curtain Wall
Unitized curtain wall: the complete curtain wall structure is made of all kinds ofpanelsand supporting frames and basic components lt can directly install on themainstructure of the buildingUnitized curtain wall main classification: unitizedcurtain wall system and semi curtain wall system.
Unitized Curtain Wall
 | How About Yoli Suntra's Unitized Curtain Wall?Unitized curtain wall is a type of building curtain wall in which panels and supporting frames are prefabricated in the factory as complete curtain wall units and directly installed onto the main structure. It serves two main classifications:
Characteristics of unitized curtain wall system: 1.The height of unitized curtain wall is the height of the floorsiab, the width isgenerallyabout 1.2 meters to 1.5 meters.if it is convenient installation. lt can be directly hung on embedded parts of thefloorslab. 2.Put the glass, aluminium panel or other materials together and assemble inthefactory will promote the degree of building industrialization. 3.Because the unit parts in the process of the whole assembly are easy to checkinthe factory, it is useful to ensure the overall quality of the diversification, toensure thequality of the curtain wall. 4.Unitized curtain wall installs from the lower floor to the upper floor. Therefore, ltcanbe simultaneously constructed with civil work and greatly shorten the projectperiod. 5.All project installation of unitized curtain wal can be completed in the floorandsaving a lot of installation labor costs. 6.Unitlzed curtain wall needs to use high-tech design principles, thecontractorrequires a certain advanced designers and equipment, Only thecompany withstrength has the ability to build the unitized curtain wall. 7.Unitized curtain wall requires high technology components and thealuminiumprofile shape is more complex. lt demands a large amount ofaluminum, so the cost isslightly higher than frame type curtain wall. |
Unitized Curtain Wall
How About Yoli Suntra's Unitized Curtain Wall?
Unitized curtain wall is a type of building curtain wall in which
panels and supporting frames are prefabricated in the factory as complete curtain wall units
and directly installed onto the main structure.
It serves two main classifications:
unitized curtain wall system：Fully prefabricated units, installed as a whole.
semi-curtain wall system：Partially prefabricated, with on-site assembly.
Characteristics of unitized curtain wall system:
1.The height of unitized curtain wall is the height of the floorsiab, the width isgenerallyabout 1.2 meters to
1.5 meters.if it is convenient installation. lt can be directly hung on embedded parts of thefloorslab.
2.Put the glass, aluminium panel or other materials together and assemble inthefactory will promote
the degree of building industrialization.
3.Because the unit parts in the process of the whole assembly are easy to checkinthe factory, it is useful
to ensure the overall quality of the diversification, toensure thequality of the curtain wall.

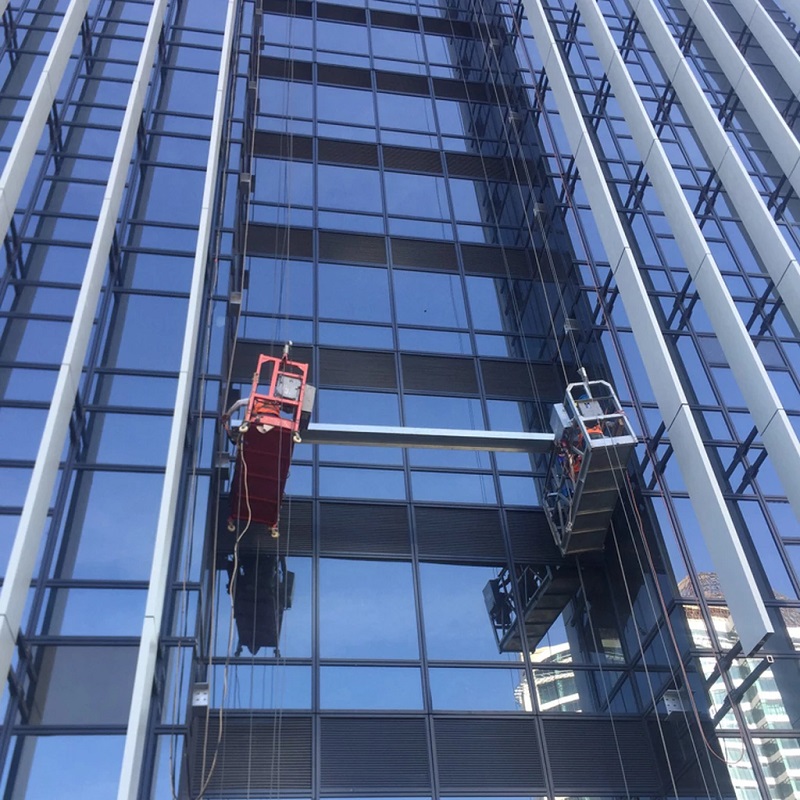

4.Unitized curtain wall installs from the lower floor to the upper floor. Therefore, ltcanbe simultaneously
constructed with civil work and greatly shorten the projectperiod.
5.All project installation of unitized curtain wal can be completed in the floorandsaving a lot of installation
labor costs.
6.Unitlzed curtain wall needs to use high-tech design principles, thecontractorrequires a certain advanced
designers and equipment, Only thecompany withstrength has the ability to build the unitized curtain wall.
7.Unitized curtain wall requires high technology components and thealuminiumprofile shape is more complex.
lt demands a large amount ofaluminum, so the cost isslightly higher than frame type curtain wall.
